LB Explosion Proof Crane
(LB Explosion Proof Crane)
- +8616696663259
- [email protected]
- +8616696663259
INTRODUCTION
The design, manufacture, installation and operation of LB explosion-proof single girder overhead crane meet the requirement of JB/T 10219 standard. This explosion-proof single girder overhead crane is equipped with HB explosion-proof wire-rope electric hoist which is a light type equipment.
- +8616696663259
- [email protected]
- +8616696663259

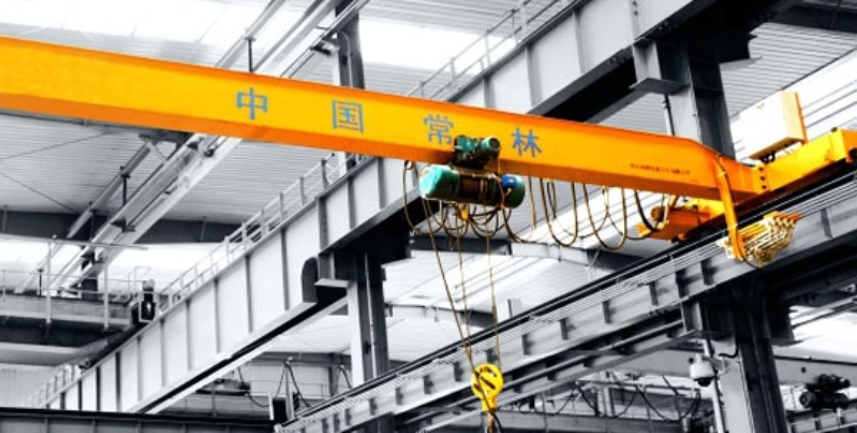

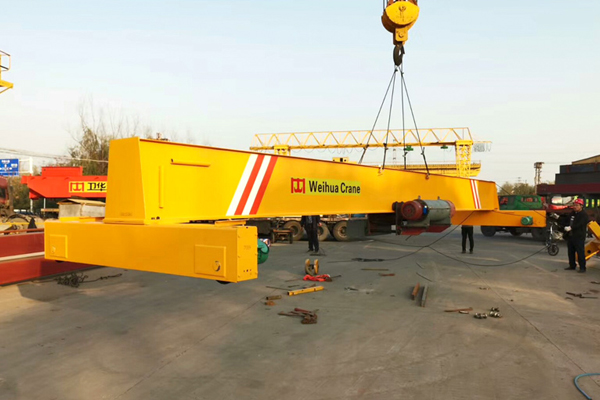

Detailed Photos
With explosion-proof grade of ExdIIBT4 or ExdIICT4, this explosion-proof single girder overhead crane can be used at workshops with initiation ability lower than IIB or IIC, and danger area 1 or 2 (according to GB3836.1-2000). The explosion-proof performance of motor and all electric equipment meets the requirement of GB3836.2-2000.
Specification
| LB Technical Specifications | ||||
| Crane Traveling Mechanism | Lifting Speed | m/min | 20 | |
| Reduce Ratio | 58.95 | |||
| Motor | Type | Cone-shape Cage | ||
| Power | KW | 0.8×2,1.5×2,2.2×2 | ||
| RPM | r/min | 1380 | ||
| Lifting Mechanism (Electric Hoist) | Hoist Type | HB, BCD, BMD | ||
| Lifting Speed | m/min | 8/0.8,7/0.7,3.5/0.35 8,7,3.5 | ||
| Lifting Height | m | 6, 9, 12, 18, 24 | ||
| Traveling Speed | m/min | 20 | ||
| Motor | Cone-shape Cage | |||
| Work Duty | A4 | |||
| Power Supply | 380V, 50Hz, Three Phase | |||
| Diameter of Wheel | Φ270mm、Φ400mm | |||
| Wideth of Track | 37mm~70mm | |||
| Explosion-proof Grade | ExdⅡBT4/ExdⅡCT4 | |||
