Electromagnetic Beam Crane

(Electromagnetic Beam Crane)

INTRODUCTION

Electromagnetic beam crane is mainly used to transport finished steel plates, billets, and sections from the roller table to the stack on the production line of the continuous rolling workshop. In the finished product warehouse it is used to load and unload vehicles or carry out stacking operations. The safe working load of this crane including the weight of electromagnetic beam.

Weihua electromagnetic beam cranes are divided into non-rotary electromagnetic beam cranes, rotary electromagnetic beam cranes and special electromagnetic beam cranes. The cranes can be designed and manufactured with types of double girder or single girder overhead cranes, gantry cranes and semi gantry cranes.

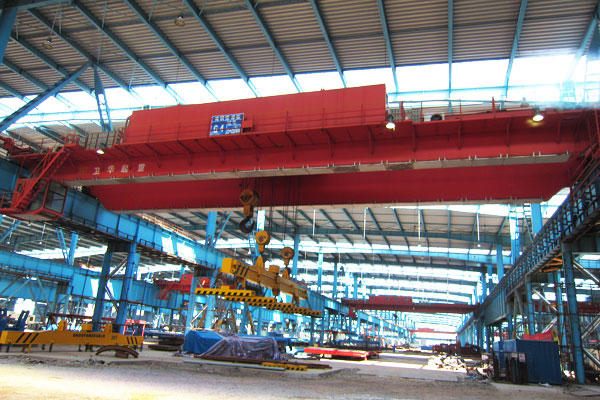

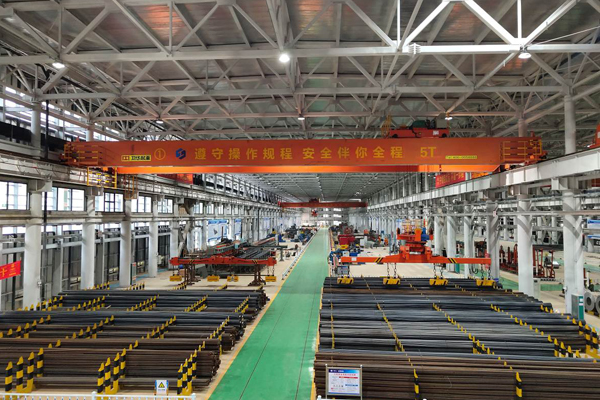

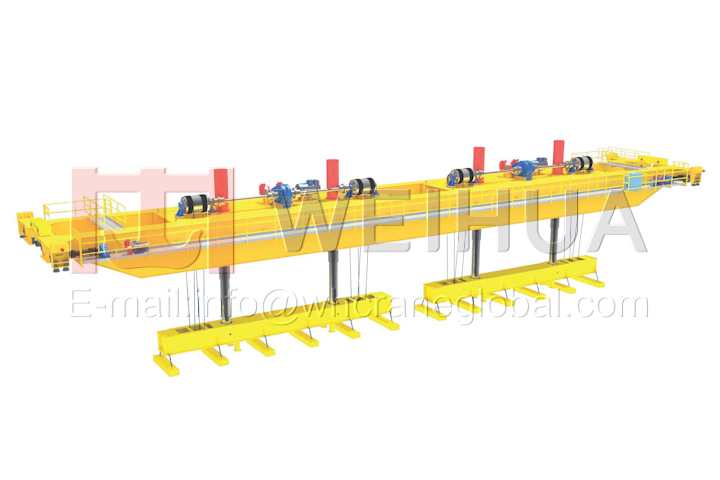

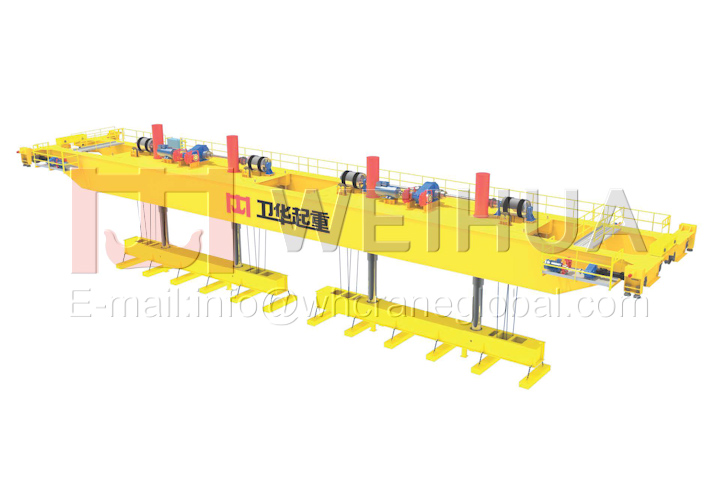

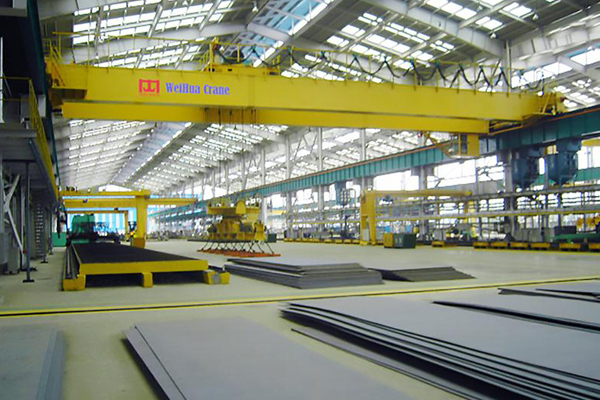

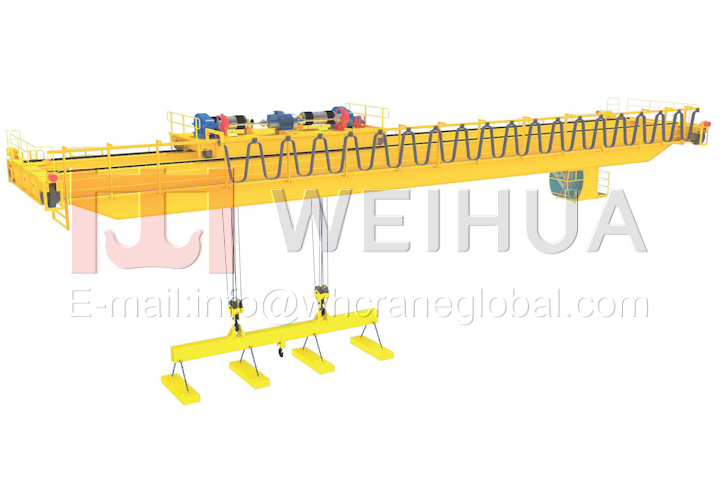

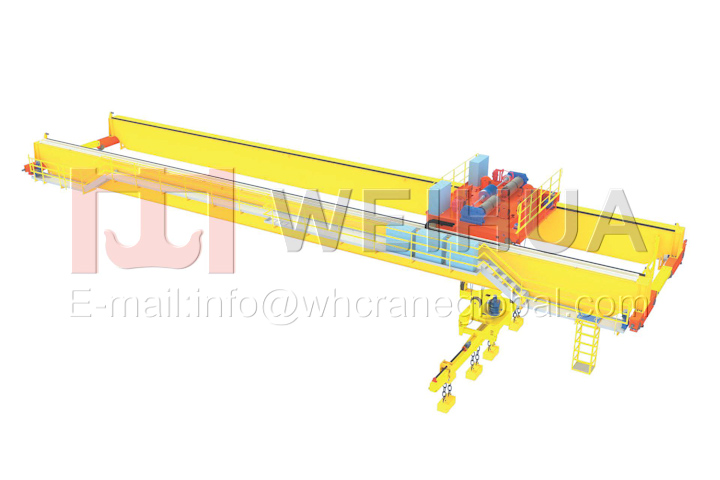

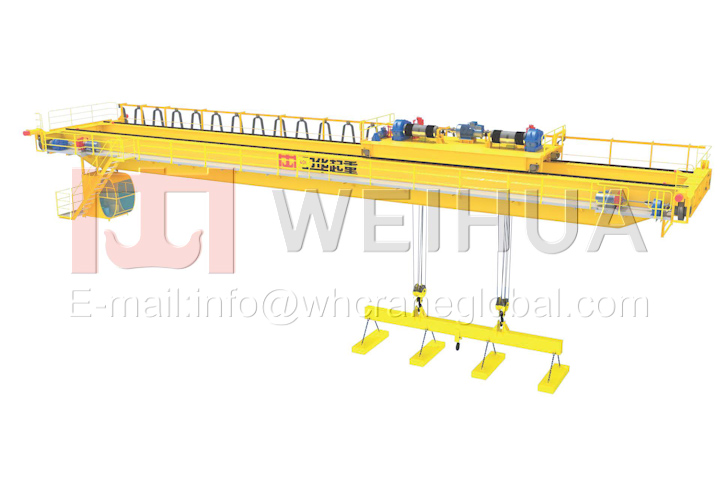

Detailed Photos

Main Features and Benefits of Electromagnetic Beam Cranes

1. The rotating part of hook must be locked by screws during electromagnetic plate working.

2. Its lifting capacity includes the weight of electromagnetic part, and the weight of whole crane does not include the weight of electromagnetic chuck and its components.

3. Box-typed girder structure is welded in high strength by robots.

4. Wheels, winding drums, gears and couplings are manufactured by CNC with best quality.

5. Heavy-duty slip ring motor from Wuxi NGP, the best quality in China.

6. Electric equipment from German Siemens.

7. Independent control system: radio remote control or cab control.

8. Lifting overload protection device.

9. Polyurethane buffer.

10. Crane travel limit switch.

11. Decompression protection.

12. Emergency shutdown device.

13. Current overload protector.

Specification

Capacity	t	7.5+7.5	10+10	16+16	17.5+17.5
Span	m	28	28	28	28
Work duty		A7	A7	A7	A7
Max. lift height	m	12	16	16	16
Lift speed	m/min	12.9	11.9	12	12
Trolley speed	m/min	42.7	38	37.9	39.8
Crane speed	m/min	100	91.3	114	114
Hoisting motor power	KW	YZR280M-10/55	YZR315M-10/63	YZR355M-10/90	YZR355M-10/90
Trolley traveling power	KW	YZR200L-8/2×15	YZR160M2	YZR160L-6/11	YZR160L-6/11
Crane traveling power	KW	YZR200L-8/2×15	YZR180L-82×15	YZR225M-8/22×2	YZRM-8/22×2
Magnet weight	kg
Trolley weight	kg	14280	14980	16.23	16.50
Crane weight	kg	54280	62865	89.5	100.6
Max. wheel load	KN	240	280	39.0	40.6
Rail recommended	kg/m	38.43	38.43	QU70	QU100
Power supply	AC 3P	380v 500Hz	380v 50Hz	380v 50Hz	380 50Hz
