Forging Crane

(Forging Crane)

INTRODUCTION

The forging crane is used for forgings lifting, buffering and turning. It is one of the main lifting equipment in the forging workshop. The safe working load of the crane including the weight of the special spreader and the largest forging.

Forging cranes, which are used with forging press machines to produce hot forged parts such as turbine rotors and crankshafts, are exposed to severe working conditions. The Japan Steel Works Ltd. and Japan Casting and Forging Corporation are expanding their large-scale facilities to forging press machines with capacities of greater than 10,000 tons in response to orders resulting from nuclear power plant construction. The forging cranes are for use with these new large-scale forging press machines.

Weihua new forging crane provides a state-of-art combination of safety and efficiency, with the introduction of the most up-to-date technology.

Detailed Photos

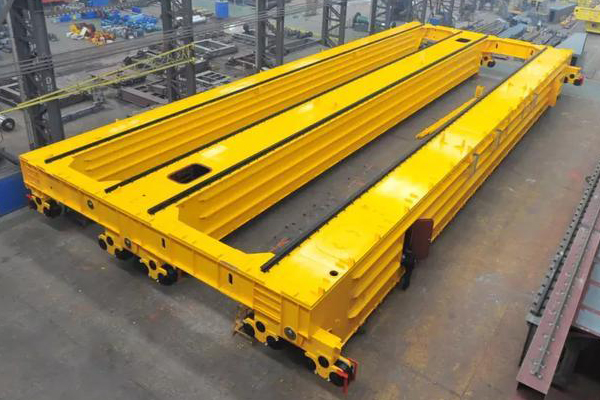

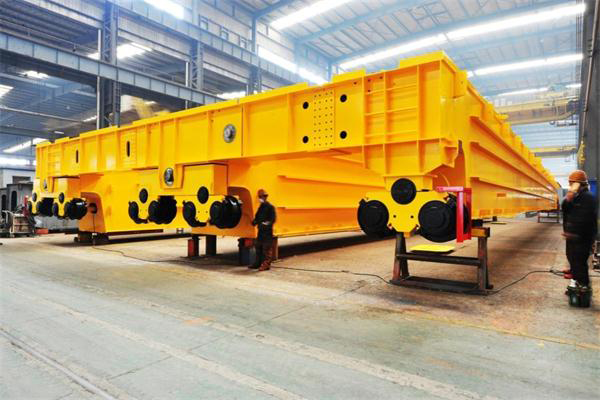

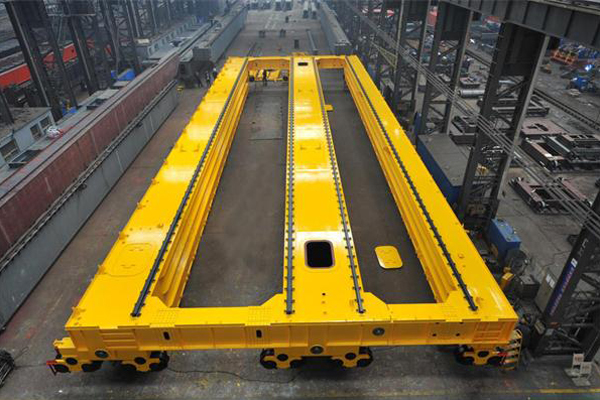

The overhead crane for forging adopts the internationally advanced 3-beam 4-rail bridge structure, manufactured by first-class processing equipment and advanced manufacturing processes. The scientific preparation of the manufacturing process and the use of advanced processing methods ensure the high quality of the forging crane.

Main Features and Benefits of Weihua Foundry Crane

1. The crane is equipped with mechanical anti-shock function and mechanical anti-overload function, which is safe and reliable.

2. The crane is subject to 1.4 times static load and 1.2 times dynamic load test.

3. The crane is designed with 3-beam 4-rail, and both the main and auxiliary beams adopt a wide-flange off-rail box-shaped structure.

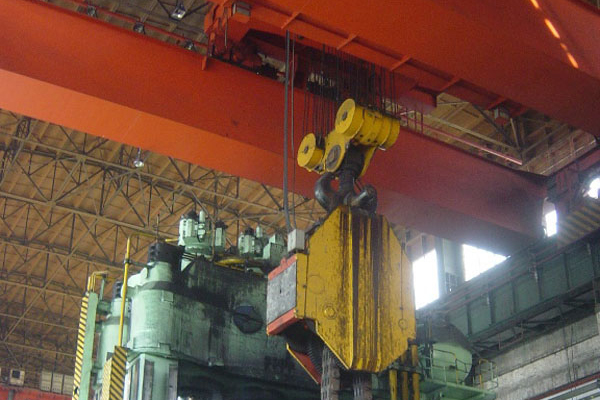

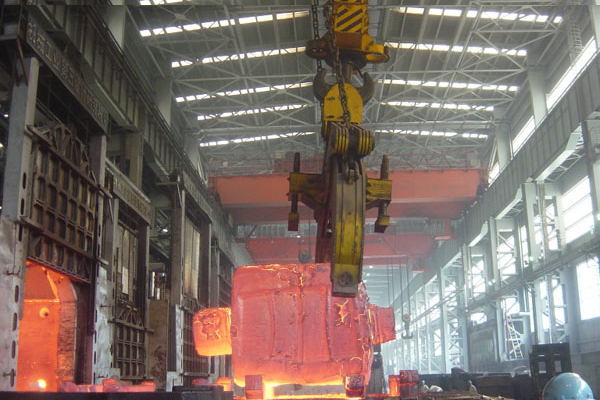

4. The crane is equipped with a special turning machine to lift and reverse the forging parts.

5. The key points of each part are calculated by finite element analysis technology.

6. The flexible design of the crane adopts bolts and articulated joints between the modules, which is convenient for installation and maintenance, improves the utilization rate of the plant, reduces energy consumption, and has strong adaptability.

7. The computer simulation and analysis technology are used to analyze and control the research and development results.
