INTRODUCTION

Charging and Teeming cranes are core machines for the Steel Making process. They are designed for heavy / extra-heavy duty operation and settled to guarantee availability of more than 99%. Charging and Teeming cranes are used to feed the electric arc furnace (EOF) in the charging bay of as well as to transfer the steel ladle to the turret station of continuous casting machine (CCM) or to the ladle furnace (LF). The same type of crane is used to transfer hot metal into the basic oxygen furnace (BOF) vessels.

Metallurgical cranes are the central product and key product of Weihua Group. The design and construction of metallurgical cranes can only be completed through discussions and finalization between manufacturers and customers. We have always maintained customer demand as the first industry requirement.

Meet customer requirements and guarantee the safety of production in the metallurgical industry.

Related product links:

① Metallurgy Cranes

② Machinery Manufacturing

③ Ladle Cranes

④ Metallurgical Overhead Crane

⑤ Quenching Crane

The teeming crane is the main equipment in the steel-making and continuous casting process, mainly used for lifting and transferring liquid ladle.From the overall structure, it has types of double beam & double track crane, four beam & four track crane, and four beam & six track crane.The first two types are generally used for medium and large capacity casting cranes, and the third one is generally used for extra-large capacity casting cranes.The teeming crane designed and manufactured by our company has the characteristics of advanced technology, novel structure, safe and reliable, economical and durable, and simple maintenance.In addition, WEIHUA teeming crane has optional functions such as rotatable spreader, variable hook distance gantry hook, load weighing and so on.

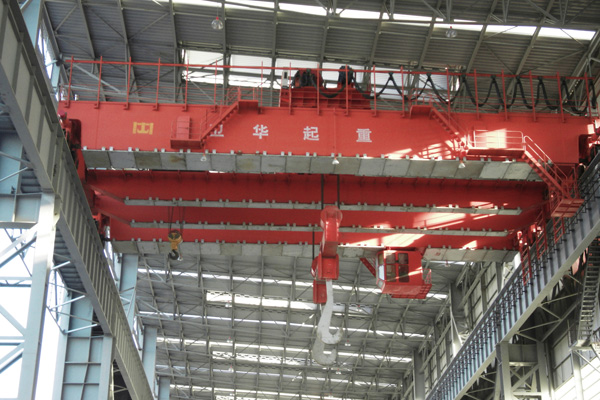

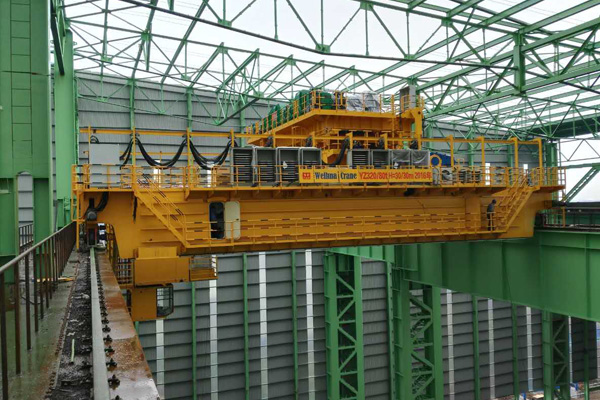

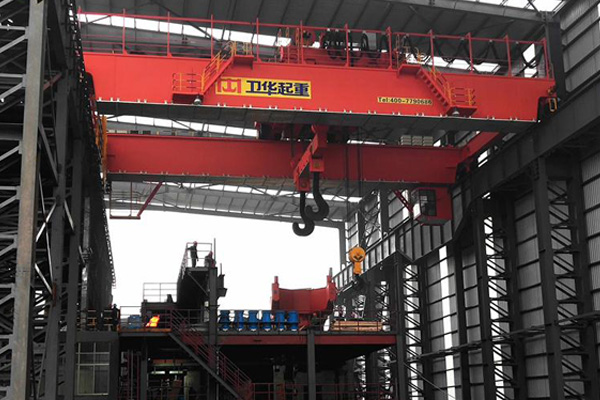

Detailed Photos

WEIHUA teeming cranes are core machines for the Steel Making process. They are designed for heavy / extra-heavy duty operation and settled to guarantee availability of more than 99%. Charging and Teeming cranes are used to feed the electric arc furnace in the charging bay of as well as to transfer the steel ladle to the turret station of continuous casting machine or to the ladle furnace. The same type of crane is used to transfer hot metal into the basic oxygen furnace vessels.

Specification：

teeming crane

Four Beam and Four Rail type teeming crane is a most general popular design in the crane market, Quite suitable for big capacity teeming crane 100 ton ~320 ton. The main structure of teeming crane is include electrical equipment, main trolley system, traveling system, beam structure, auxiliary trolley system, lifting traverse beam etc.

Four Girder Six Rail teeming crane is normally for extreme huge capacity ,more than 320 ton. The purpose is solving the big wheel pressure ,improve the trolley pressure for the main beam.

Double Girder Double Rail Single Trolley teeming crane is designed for small capacity 120t below ladle cranes. Main hoist and auxiliary hoist are in one trolley system. Hook distance is fixed. It has compact structure.

Double Girder Four Rail teeming crane is also for small capacity 100 ton below. It have independent main hoist trolley and auxiliary hoist trolley. This design could help the auxiliary hook to work more easily to hook the ladle.

Double Girder Double Rail Mother and Child type trolley teeming crane. The child trolley could traveling small distance on the main trolley .So that the hook distance could be adjustable .

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
