Bridge Type Grab Ship Unloader

(Bridge Type Grab Ship Unloader)

INTRODUCTION

Bridge type grab ship unloader is mainly used for unloading bulk materials from ship in bulk cargo ports and terminal. It can also convey bulk materials with different densities and particle sizes, such as sand, limestone, cement, coal, grain and etc. It is mostly port machine to load and unload bulk cargo in the terminal with the advantages such as maturation, reliability, strong adaptability to different ship types and cargo types, high productivity, high degree of automation, low failure rate and convenient maintenance.

lt is worth mentioning that our company's bridge-type grab ship unloader has also developed into the most commonly used ship unloader in the bulk port. It can be suitable for the 3, 000t-250, 000t degree bulk ships.

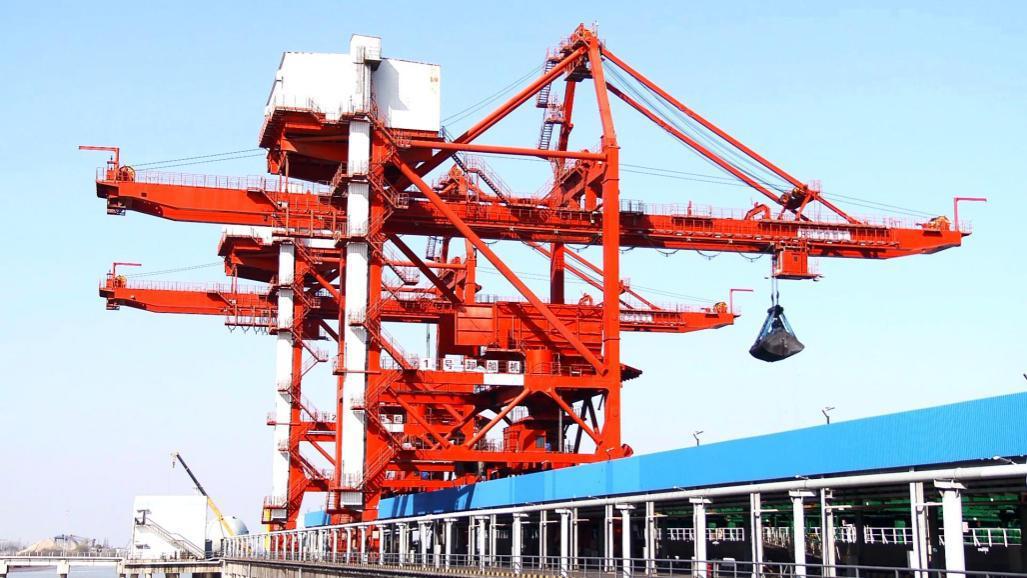

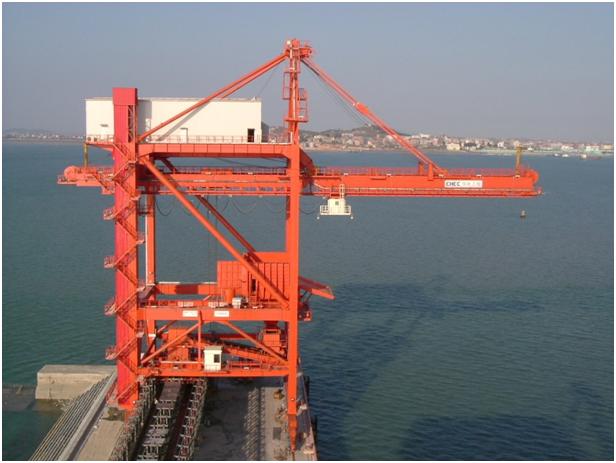

Detailed Photos

Feature For Bridge Type Grab Ship Unloader

1. It has the optimal flexible schedule and wide adaptability, moreover, which can adapt to the bulk commodities which have different densities and particles after replacing its hand grabs.

2. Due to the matured product, simple structure and strong reliabiliy,it can be widely used in the bulk unloading from ships in the seaport.

3. Considering that its reclaiming grab bucket has simple structure, itis simple to repairing and maintaining the ship unloader due to the small workload.

4.It has the special superiority when the corrosive bulk commodities are unloaded.

5.It has strong adaptability for the different particle sizes of bulk materials, such as, the materials with more than 300-800mmparticle size can be grabbed.

6.It has good adaptability for the hatchways of the bulk ships, meanwhile, which will not be affected by the tidal level.

Specification

Main Technical Parameters of Bridge type grab ship unloader
Rated Capacity		t/h	400-2500
Material Characteristics	Materials		Bulk materials such as coal, coke, iron ore, limestone, sand, clay etc.
	Density	t/m³	0.5~2.5
	Particle Size	mm	0~300
Lifting Capacity		t	10-63
Speed	Lifting, Opening and Closing	m/min	（60~280）/（100~240）
	Trolley Traveling		100~260
	Crane Traveling		20~40
	Boom Hoist		5~10
	Cabin Traveling		20~25
Rail Gauge		m	12.5-30
Rail Gauge			To be confirmed according to the user's terminal conditions
Maximum Wheel Load		KN	300/500
Recommended Rail			QU80/QU100/QU120
Power Supply Mode			cable drum
Communication Type			cable drum/wireless
Control Method			fully automatic/PLC/manual operation/single mechanism operation
