MQ Portal Crane
(MQ Portal Crane)
- +8616696663259
- [email protected]
- +8616696663259
INTRODUCTION
As the benchmark of China's crane industry, Weihua has designed and produced China's largest 80-ton four-link gantry crane and designed and produced a single-boom gantry crane with a maximum of 300 tons.
MQ portal crane is widely used in ports, stations, and storage yards, which can efficiently carry out operation of load, unload and transship to speed up the turn around of ships and vehicles. Advantages of port portal crane: good performance, beautiful exterior, efficient work, compact structure, running balanced, comfortable operation, safe&reliable, convenient for maintenance. Port portal crane can be used at limited space in ports to load and unload cargo on ships, and leave considerable room for vehicles to pass through, especially applies to universal ports.
- +8616696663259
- [email protected]
- +8616696663259

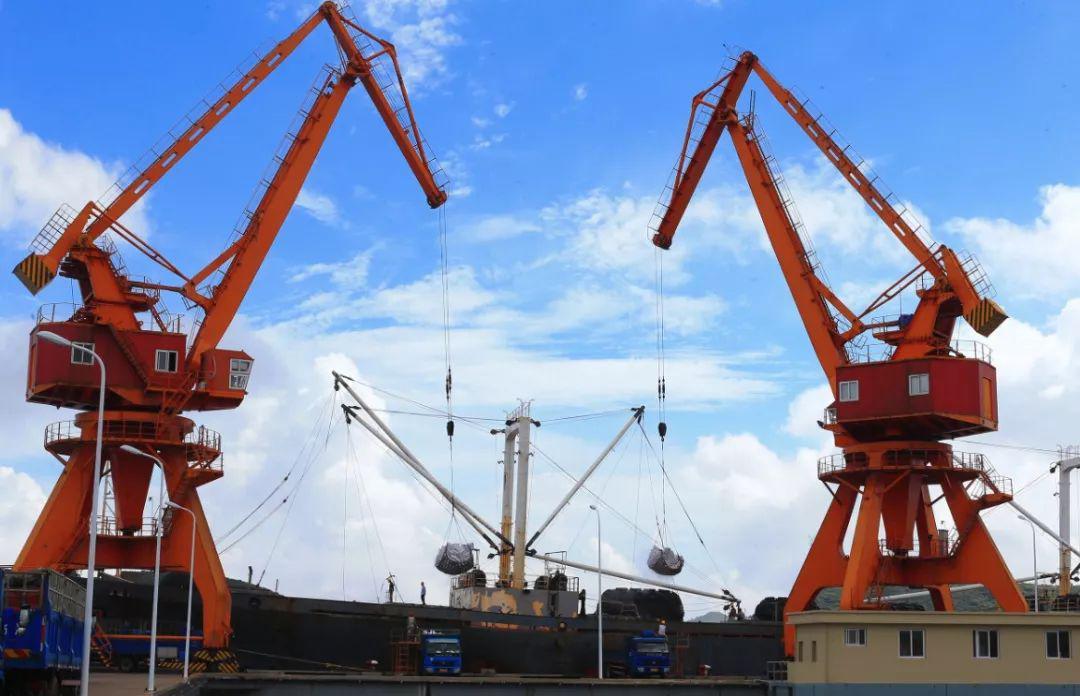

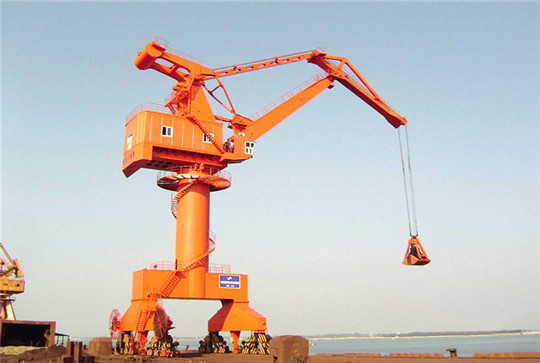

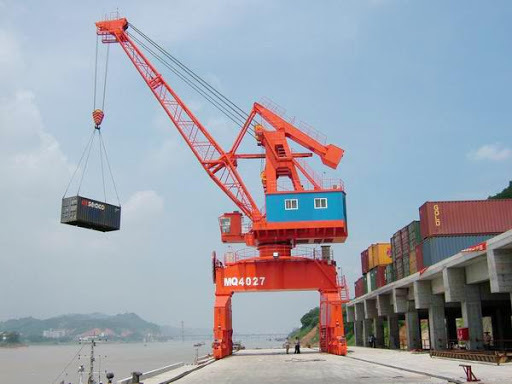

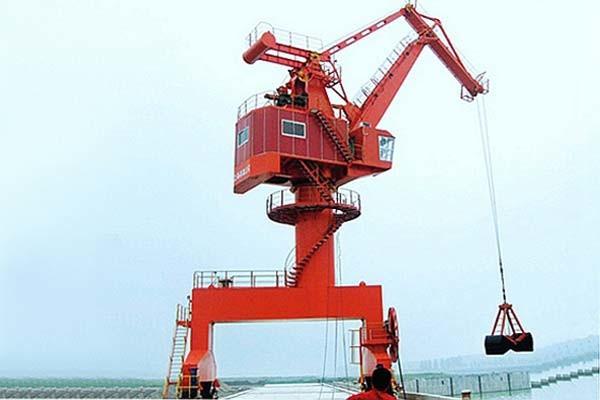

Detailed Photos
Feature For MQ Portal Crane
1. Sling can be grab and hook, good adaptability, wide application;
2. Optimized four-bar linkage mechanism, precise luffing;
3. 360° slewing, wide working scope;
4. PLC control, AC frequency speed control, stable and reliable running;
5. Remote control are available according to the requirement;
6. Adequate protection devices, communication and lighting system.
Specification
| Type | Lifting Capacity | Height | Height | Gauge×base | Lifting Speed | Max Wheel Load | Installed Capacity | Match Ship | |||||
| / | (t) | Max (m) | Min (m) | above rail (m) | below rail (m) | (m) | Lifting (m/min) | Amplitute (m/min) | Rotation (m/min) | Crane (m/min) | (KN) | (KW) | (/DWT) |
| MQ525 | 5 | 25 | 8 | 12 | 9 | 10.5×10.5 | 40 | 24 | 1.5 | 25 | 180 | 280 | 19000 |
| MQ535 | 5 | 33 | 10 | 15 | 9 | 10.5×10.5 | 50 | 40 | 1.5 | 25 | 210 | 300 | 30000 |
| MQ1025 | 10 | 25 | 8 | 15 | 9 | 10.5×10.5 | 50 | 50 | 1.5 | 25 | 220 | 330 | 19000 |
| MQ1033 | 10 | 33 | 10 | 20 | 12 | 10.5×10.5 | 50 | 40 | 1.4 | 25 | 185 | 345 | 30000 |
| MQ1625 | 16 | 25 | 9 | 20 | 12 | 10.5×10.5 | 50 | 40 | 1.5 | 25 | 240 | 325 | 19000 |
| MQ1633 | 16 | 33 | 10 | 28 | 15 | 10.5×10.5 | 60 | 40 | 1.5 | 25 | 250 | 345 | 30000 |
| MQ2533 | 25 | 33 | 10 | 28 | 15 | 10.5×10.5 | 60 | 50 | 1.5 | 25 | 260 | 435 | 30000 |
| MQ4033 | 40 | 33 | 10 | 28 | 16 | 10.5×10.5 | 50 | 50 | 1.41 | 25 | 260 | 560 | 30000 |
