Rubber-tyred Gantry Crane / RTG Crane

(Rubber-tyred Gantry Crane / RTG Crane)

Leave a Message!

INTRODUCTION

RTG crane is short for Rubber-tired container gantry crane, which is one of the main products of our company. At present, we have developed the products to standardized series products. For safety facilities, the rubber tired gantry crane is equipped with overload protection, diesel engine over speed rotection, water high temperature indicator and lower oil pressure indicator devices, and wind speed indicator, typhoon anchor device, emergency stop button and each mechanism limit switch and indicator, etc.

Leave a Message!

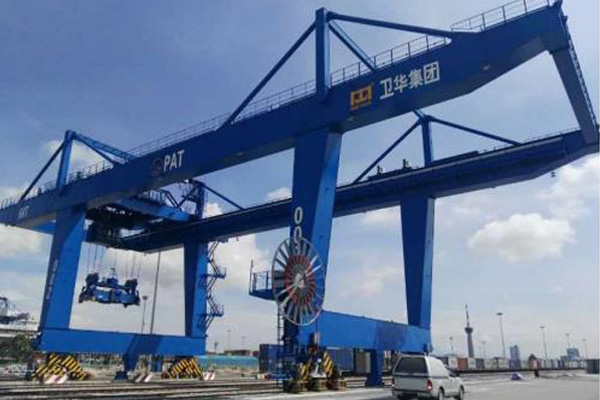

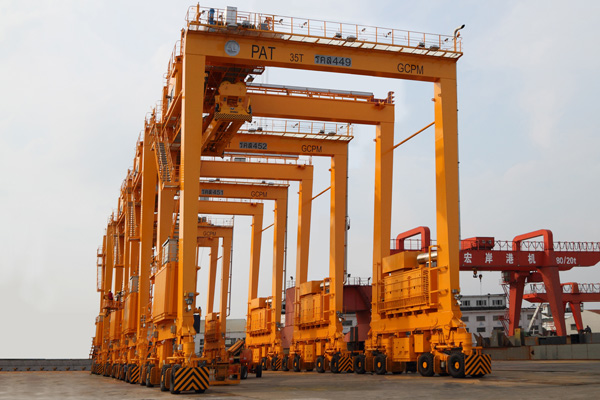

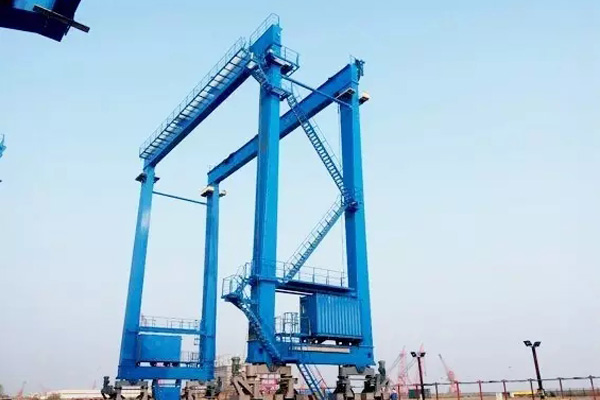

Detailed Photos

Feature For RTG Crane

1. It can ensure that the box girder will not fall with the lifting winch equipped with dual braking system and other lifting parts with reliable design.
2. Can lift several steel pipes at once, carry out 0° traveling, 45°traversing, 90°traversing and in-place steering.
3. Reasonable structure, convenient operation, quick action, high reliability, low failure rate, which
4. Running Mode is Straight, transverse, fixed point, rotation.
5. The running gear uses the hydraulic suspension system.
6. Can realize automation control, and it's the first selection of port container yard handling machine.

Specification

Lifting Capacity		T	35 without spreader
Span		M	30
Lifting Height		M	16
Working Duty			A6
Container Size			20f and 40f
Speed	Hoisting	m/min	0~10
	Cross Traveling		3.4~34
	Crane Traveling		2.9~29
Motor	Hoisting	Type/Kw	YZP280M-8/2×55
	Cross Traveling		YZP180L-8/2×11
	Crane Traveling		YZP160L-6/4×11
Weight	Trolley	t	34
	Total Weight		215
Max. Wheel Load		KN	295
Steel Rail Recommended			P43
Power Supply			3 Phase A.C. 50HZ 380V

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
