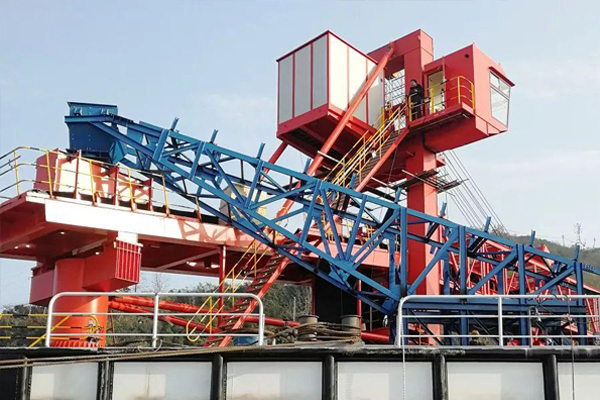

Detailed Photos
What kinds of cargo is suitable for the ship loader ?

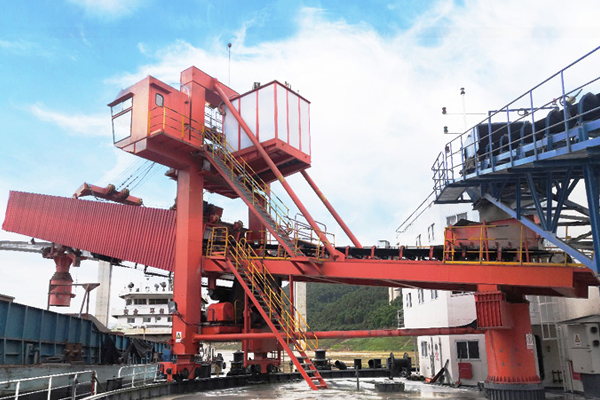

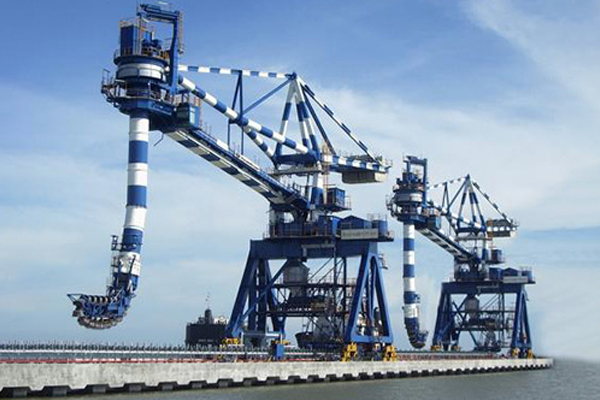

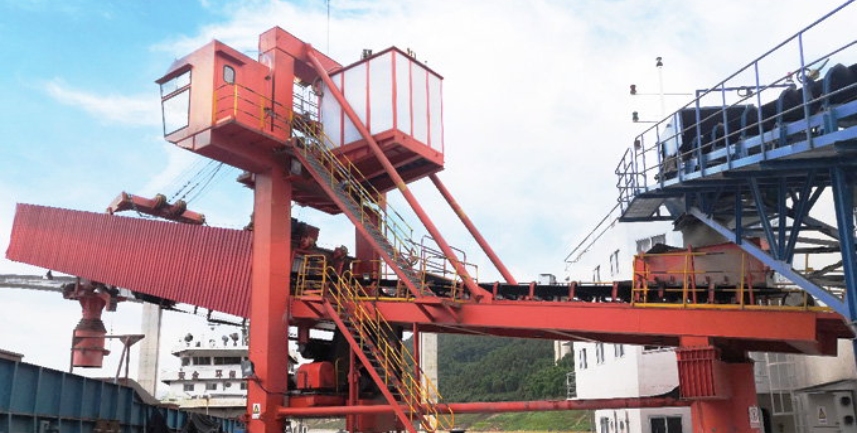

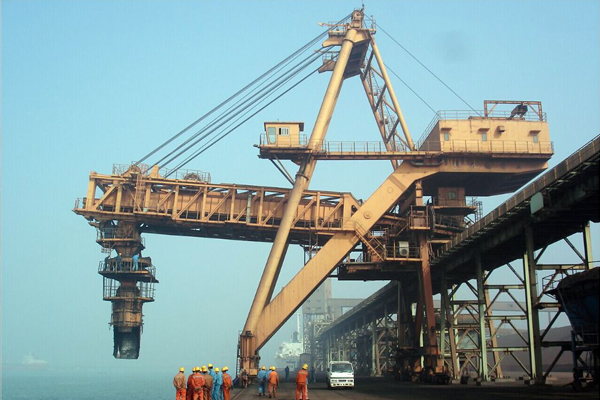

Ship loader is large-scale bulk machinery used for loading materials in bulk ports and terminals and conveying bulk materials with different densities and particle sizes, such as sand, limestone, cement, coal, grain and etc. It usually provides continuous loading operation together with belt conveyor. The ship loader adapts to ship type from 3000 ton to 150000 ton and production capacity from 200t/h to 12000t/h. It owns high efficiency, long service life, energy saving and environmental protection as well as meets efficient and frequent operation requirements.
Specification
Main Technical Parameters of Ship Loader | |||
Loading Capacity | t/h | 200~12000 | |
Material Characteristics | Materials | Bulk materials such as coal, coke, iron ore, limestone, sand, clay etc. | |
Density | t/m³ | 0.5~2.5 | |
Particle Size | mm | 0~300 | |
Ship Type | DWT | 3000~150000 | |
Boom Outreach | Maximum | m | 12~55 |
Minimum | m | 6~27.5 | |
Conveyor Belt | Belt Width | mm | 650~2400 |
Belt Speed | m/s | 1.25~5 | |
Boom Luffing | Operation | ° | -12~+15 |
Non-operation | ° | 70 | |
Traveling Speed | m/min | 5~30 | |
Rail Gauge | m | 10~24 | |
Maximum Wheel Load | KN | 300/350 | |
Recommended Rail | QU80/QU100 | ||
Power Supply Mode | cable drum/safety bus bar | ||
Communication Mode | cable drum/wireless | ||
Control Method | Fully automatic/PLC/manual operation/ single mechanism operation. |
