Crane Rails

(Crane Rails)

Leave a Message!

INTRODUCTION

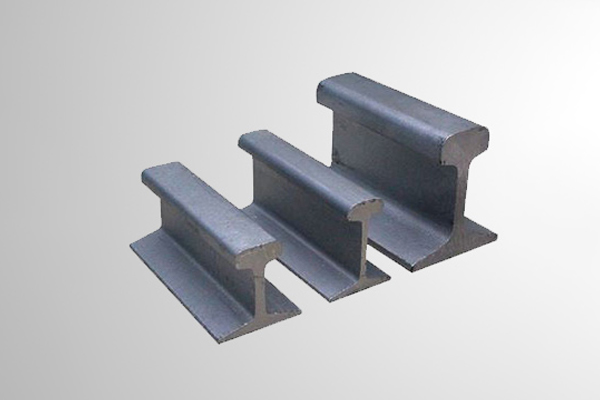

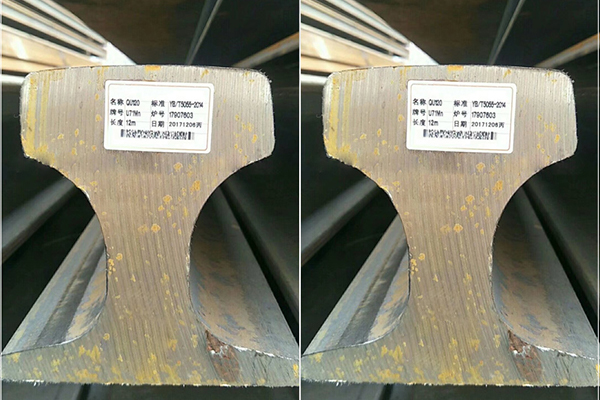

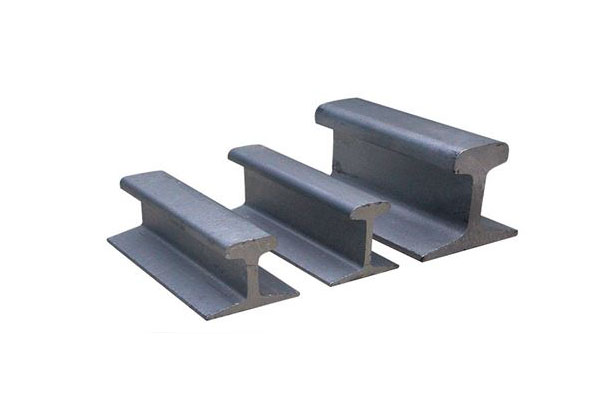

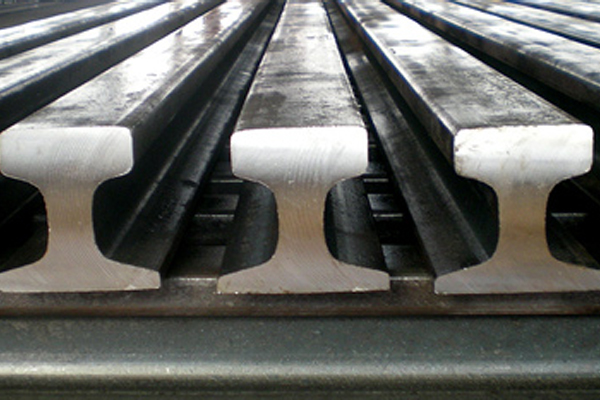

Crane rails are the main body of crane tracks. Crane rails provide a continuous, smooth and low-resistance rolling surface for the crane wheels. It is employed to guide the wheels of the crane, bear the pressure of the wheel, and transmit it to the sleeper and ground. Weihua provide various crane rail models such as P24, P38, P43, QU70, QU80, QU100, QU120, etc. for the different crane and special conditions.

Leave a Message!

Detailed Photos

Features of Crane Rails:

Application: Rails/tracks for Overhead Crane, Gantry Crane, RMG, Project Crane, etc.

2. Pulling wire rope to detect the linearity of rails. Pulling a diameter 0.5mm wire rope between two ends stop lever, and using a plumb bob to detect point by point, and the interval should be 2 meter.

3. The crane rail joints could be cut into straight joint or 45°oblique joint.

4. P shape rail is the most commonly used.

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
