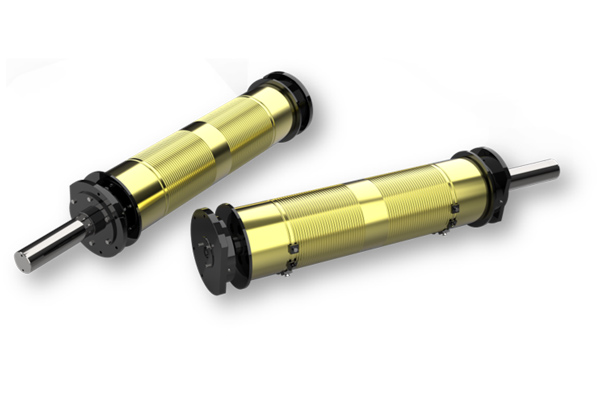

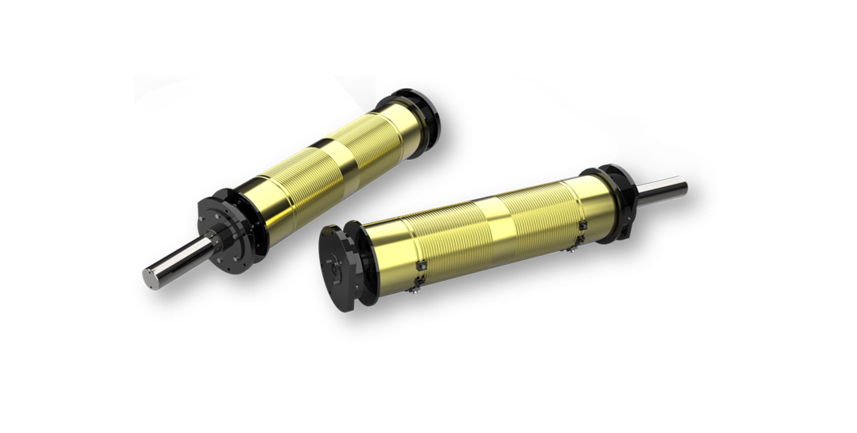

Crane Wire Rope Drum

Drum Diameter: Φ300mm~2000mm

The drum group is an important part of the hoisting equipment such as overhead crane, gantry crane, etc. which is used for the wire rope winding of the hoisting mechanism. This drum structure consists of drum body, drum shaft, bearing seat, bearing, etc. The drum material is made by Q235B or Q345B steel.

Structural Features:

1. New design with compact structure;

2. Smooth transmission, anti-offset, prolong the life of wire rope;

3. Weld flaw detection, annealing treatment for drum body;

4. Large bearing capacity and large torque, which is 15-25% higher than the traditional one.
