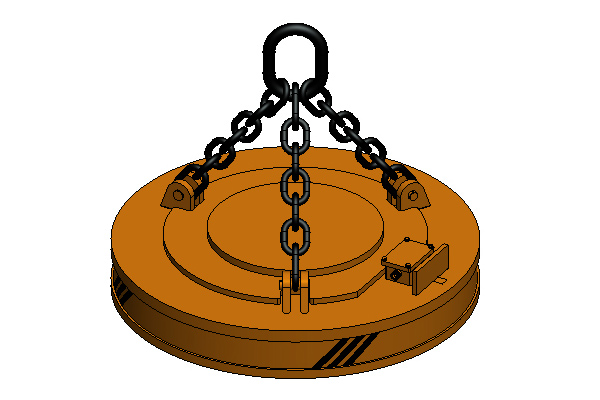

Lifting Electromagnet Chuck

Features:

1. Special magnetic circuit design with large air gap magnetic density. The coil is made of copper wire, and the coil protection plate is made of rolled high manganese steel plate with good wear resistance and strong impact resistance. Light weight, low energy consumption, heavy lifting capacity and long service life.

2. Reasonable insulation structure. The insulation treatment adopts vacuum drying and vacuum filling to improve the electrical and mechanical properties of the coil. The heat resistance grade of the insulating material can reach grade C.

3. The constant voltage control method is usually adopted. If the strong excitation control method is used, the lifting capacity can be further improved.

4. Simple structure, safe and reliable, suitable for all kinds of lifting equipment.

5. The electronic control device can be equipped with a wireless remote control device according to the user's crane parameters.

Note For Use:

1. Check whether the parts of the electromagnetic chuck are damaged before use, and replace them in time.

2. Be sure to check whether the control hub is in good condition before operating the electromagnetic chuck.

3. Observe the surroundings before hoisting, prohibit people from approaching the working area, and prohibit equipment and hoisted objects from passing above the personnel.

4. Check whether the rated current is correct before lifting.

5. Before lifting, pay attention to check whether there are non-magnetic conductive objects between the lifting object and the lifting electromagnetic chuck, so as not to affect its lifting height.

6. The lifting electromagnetic chuck must be placed directly above the lifted object, and then energized to avoid small iron cuts.

7. When landing, be sure to observe the surrounding environment and keep safe.

8. Operators must pass strict training and get the certificate for operation.

9. It is forbidden for the operator to use the electromagnetic chuck after drinking to avoid accidents.

10. After the work, place the magnet chuck in a safe designated location to avoid accidents during placement.
