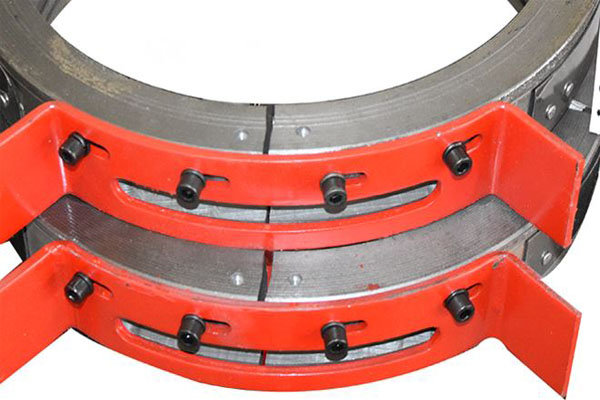

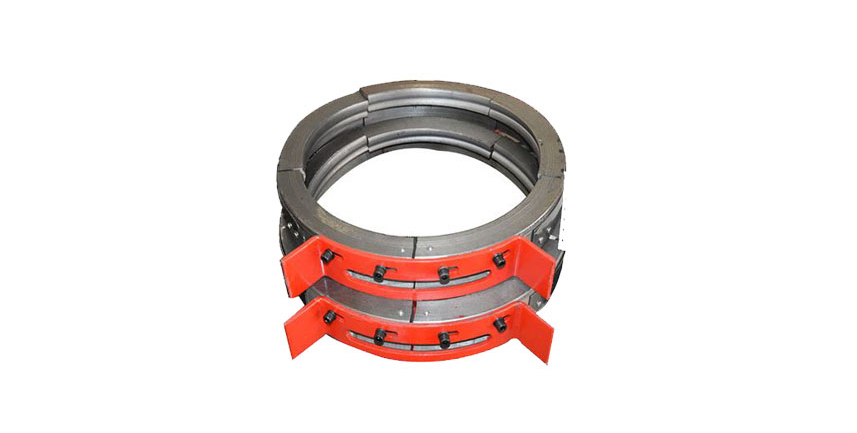

Rope Guide

(Rope Guide)

Leave a Message!

INTRODUCTION

Rope guide is also called wire rope arranging device used to make crane steel wire rope neatly arranged around the drum to avoid wire rope circles in a mess or overlaps causing malfunction to Electric Hoist, or even destroy the hoist. Crane rope guide can guarantee the normal working of electric hoist, and extend the service life of wire rope and drum.

Leave a Message!

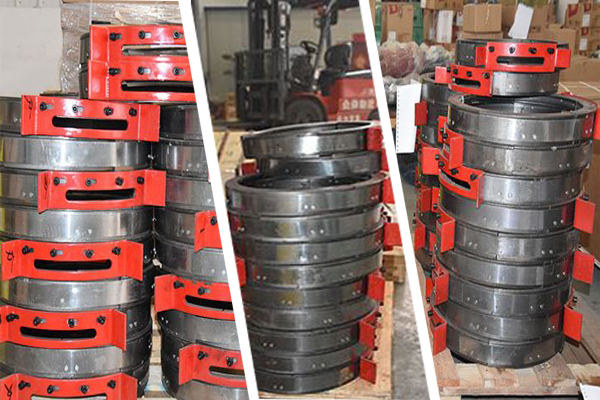

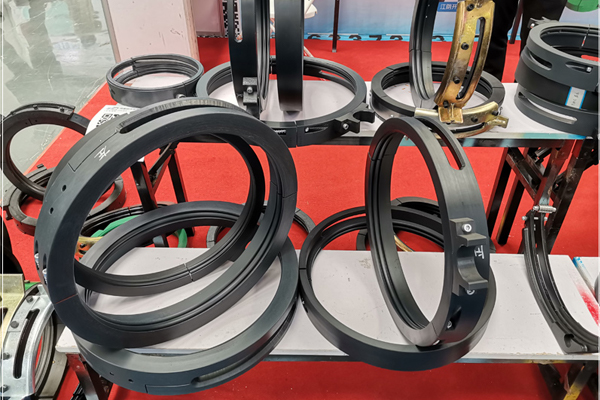

Detailed Photos

1.Application: Rope guide for electric hoist wire rope guide.

2. Rope guide is also called rope arranging device.

3. Its function is to make wire rope neatly arranged around the drum, in case wire rope circles in a mess or overlaps cause malfunction to electric hoist, even destroy the hoist.

4. when rope guide is running, it gets a large lateral force. That causes brakes. Wire rope guide is the most easily damaged part of electric hoist.

5. Its interchangeability is good.

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
