Your Position: Home > Products > Special Crane

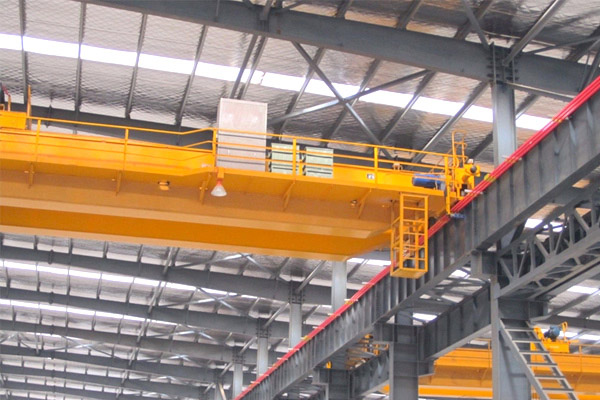

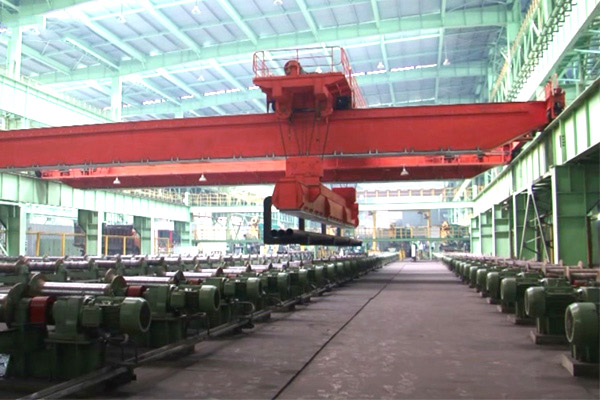

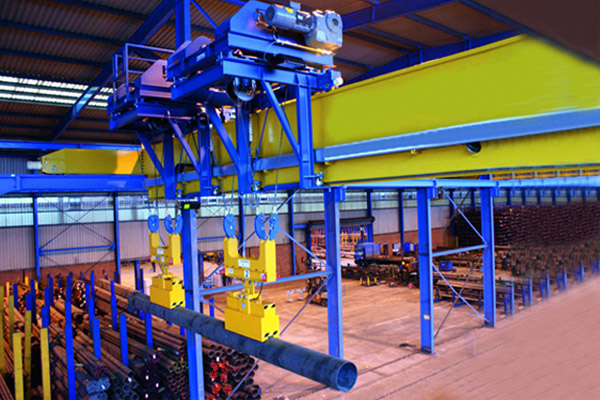

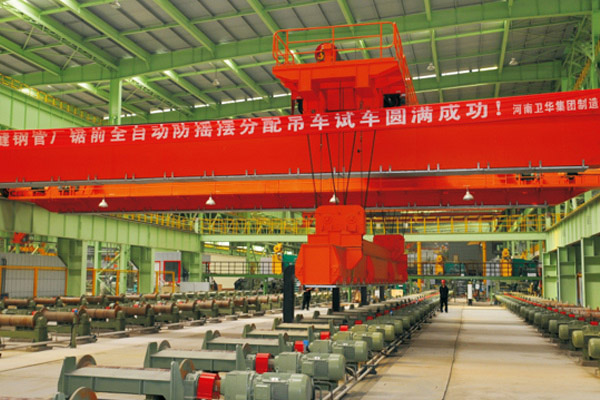

Detailed Photos

Features of Intelligent Steel Pipe Distribution Crane

1. Position signal is input from the encoder to PLC achieving automatic precise positioning. The PLC calculates the speed, and V-shaped structured wire-rope for anti-sway to reduce swing amplitude and increase the production efficiency and safety of the crane.

2. This crane adopts redundant design scheme. The lifting mechanism, trolley traveling mechanism and electric parts have backups system that increases its reliability.

3. Anti-sway and automatic precise positioning system to accomplish full-automatic, quick and intelligent transport and distribution of steel pipes.

Specification

Technical Specifications

Lifting Capacity		t	16+16
Span		m	26.5
Lifting Height		m	7
Work Duty			A7
Speed	Lifting	m/min	1.2~12
	Crane Traveling		6.2~62
	Trolley Traveling		20.6
Power		KW	315
Max Wheel Load		KN	295
Recommand Track			QU100
Power Supply			3 Phase A.C.50Hz 380V

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
