INTRODUCTION
Beam erecting machine is a steel structure equipment for prefabricated beams moving and erecting for viaduct construction. This product is also suitable for the road beam projects in the mountains with situations of not straight, big slope and Tunnels roads, etc.
This beam erecting machine is composed of main beam, upper trolley, front legs, hind legs, middle supports, etc. Control part consists of hydraulic system and electrical system. Weihua beam erecting crane can be used for different working conditions such as skew road, curved road, dislocation road, heavy beam, variable beam, double-direction construction, construction in tunnels, etc.
- +8616696663259
- [email protected]
- +8616696663259

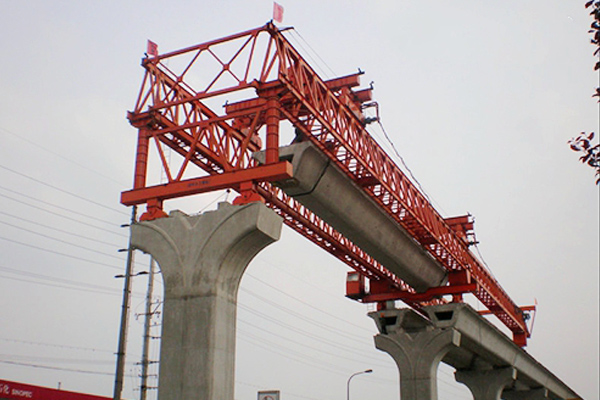

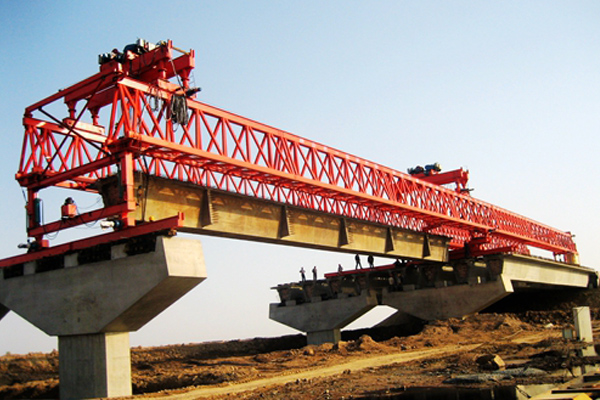

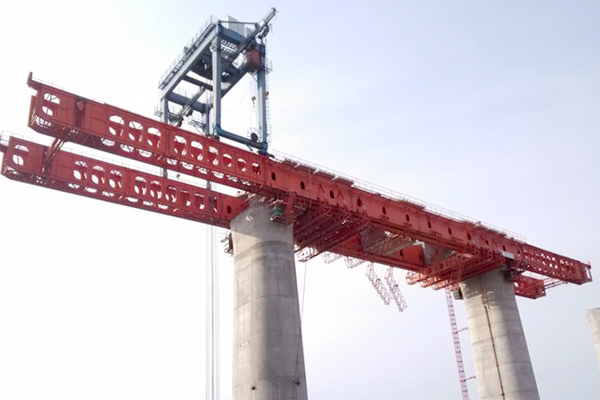

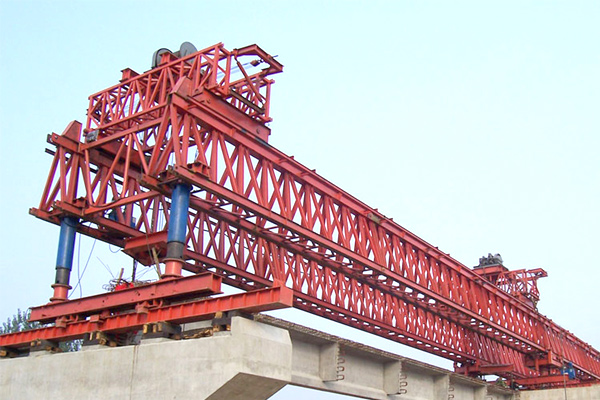

Detailed Photos
Features of Beam Erecting Machine
1. Horizontal operation laying the beam in place at one time;
2. Suitable for the construction of inclined (curved) road;
3. Light weight, convenient and quick transportation, installation and removal;
4. Safe and reliable, small longitudinal cantilever deflection;
5. The legs land on the supporting pillars, do not land on beams during longitudinal moving, no need rails, thus reduce the pressure on the beams.
Specification
| Lifting Capacity | t | 60 | 80 | 100 | 150 | |
| Concrete Beam Span | m | 20-30 | 20-35 | 30-40 | 35-50 | |
| Slope | ≤1/20 | |||||
| Turning Radius | m | 200 | 250 | 300 | 350 | |
| Oblique Bridge Angle | ≤15° | |||||
| Trolley Speed | Lifting | m/min | 1 | 1.2 | 0.8 | 0.6 |
| Vertical | 6/0.6 | |||||
| Horizontal | ||||||
| Crane Speed | Vertical | |||||
| Horizontal | ||||||
| Concrete Beam Carrier Speed | ||||||
| Total Weight | t | 84 | 95 | 146 | 180 | |
| Power Supply | 3P, AC, 50Hz, 380V | |||||
