Beam Handling Machine

This gantry crane is for the hoisting or moving of railway/highway concrete beams or bridges. There are 2 kinds gantry crane for beam handling: beam hoisting crane and beam moving machine.

For Beam Hoisting:

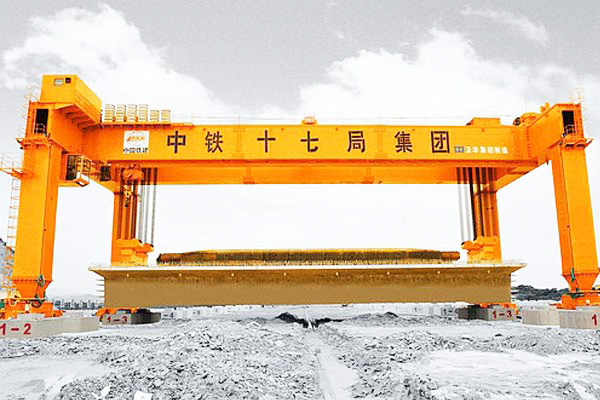

Gantry crane for beam hoisting is composed of main beam, supporting legs, crane traveling mechanism, hoisting mechanism, electric control, hydraulic system, cabin, railing, ladder and walkway, etc. And there are 2 types of crane traveling: Tire traveling and rail traveling.

The crane traveling, steering and hoisting of tire type gantry crane are all driven by hydraulic, which can realize traveling straight, oblique and horizontal, etc. Features of tire type gantry crane: Strong adaptability, high working efficiency, small footprint, need no rails, etc. Thus it is widely used for high speed railway construction for beam lifting, moving and loading.

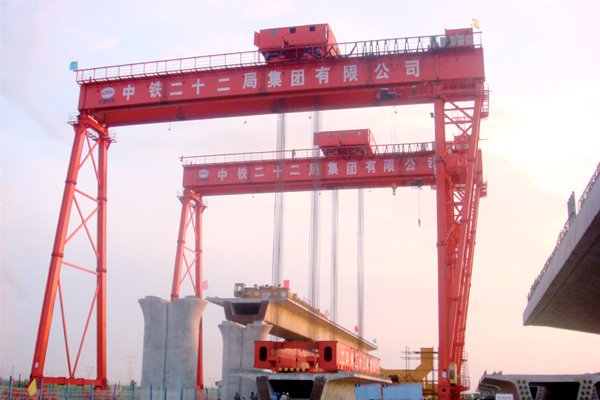

Rail mounted gantry crane for beam hoisting is usually for lifting railway beams within 1,000t, which is driven by generating units on it. This crane travels on rails with 2 directions: straight and horizontal.
