Bridge Beam Launcher Crane

(Bridge Beam Launcher Crane)

INTRODUCTION

Bridge Beam Launcher Crane adopt tire line technology to finish handling all beams in the preset field and can realize many walk line models, such as straight, oblique and crosswise. Its advantage is strong adaptability, high efficiency, small occupied area and no need to lay the rail. In the construction of the high-speed railway in China, this kind crane is used to lift, handle and load the beam by most preset field.

Bridge Beam Launcher Crane, used to lift, handle, load beam in the preset field when the high-speed railway weight is below 1000t. It adopts tired rail model running model and with power generating set to provide power. It can travel along the laid rail and its running mechanism can rotate 90 degrees to realize straight travel and crosswise to finish handling all beams in the preset field.

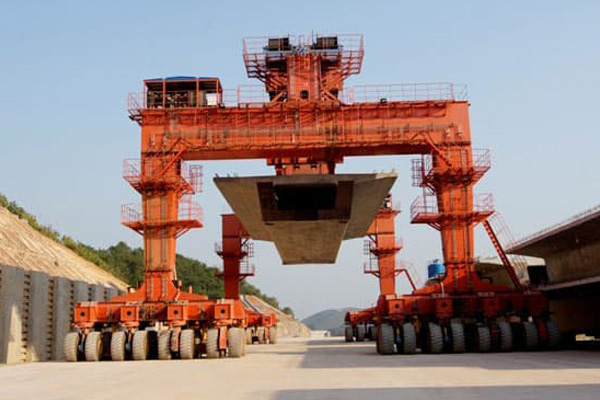

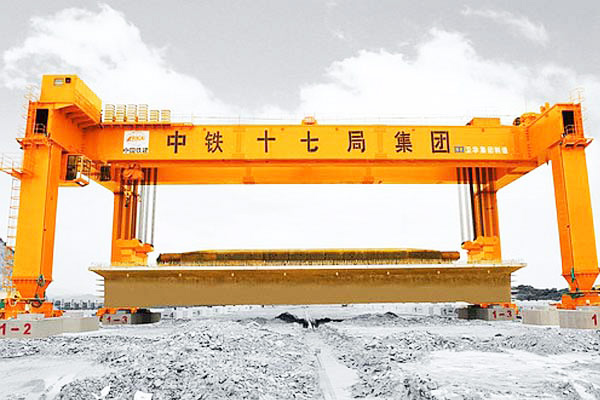

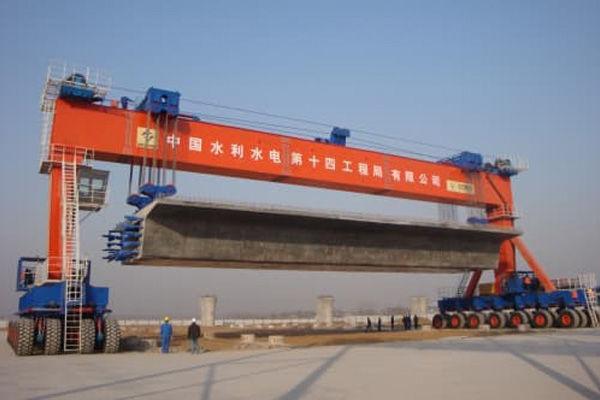

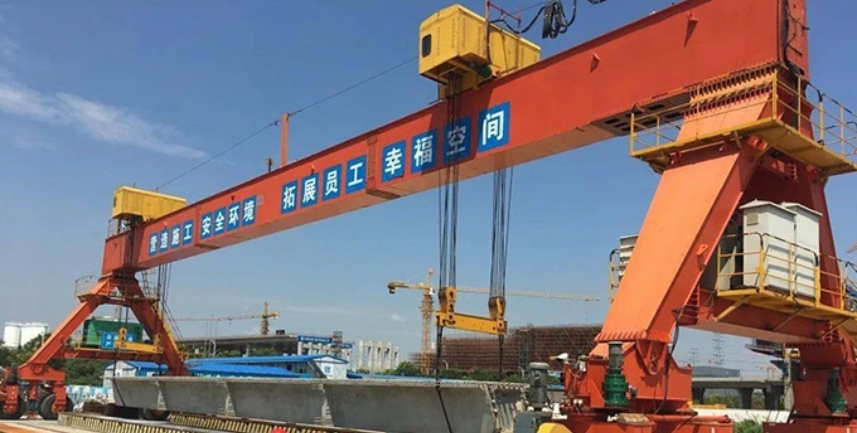

Detailed Photos

Features

Rubber tire type and rail-mounted type;
Hydraulic drove by walking, steering, and lifting;
Walk straight, oblique and rampage;
Good adaptability, high working efficiency, small space occupied;
Special spreader mainly used for lifting and transporting large concrete beam/bridge;
2 cranes, 2 trolleys with max lifting height 30m;
The max wheel load is 22t when lifting 900t stuff;
90° shift for rail type crane to achieve horizontal or vertical walking;
4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope;
Accurate positioning for stuff lifting down;
Hydraulic push for trolley to realize various lifting and save the cost;

For the 4 hoists, it can be single use or combine the use of 2 or 4 hoists while the hardware and software are interlocked for operator safety.

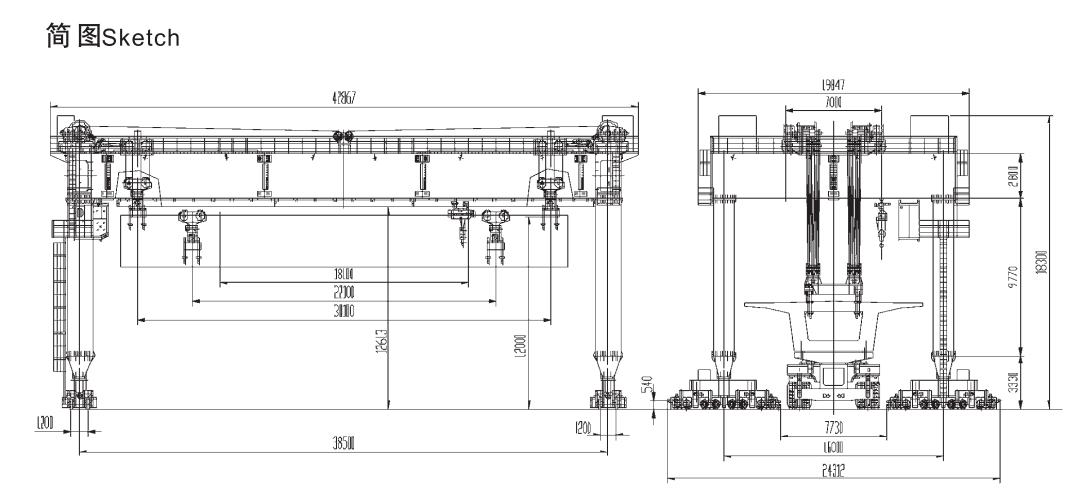

Specification

Lifting Capacity	Single	t	900 (without spreader)
Lifting Capacity	Double	t
Span		m	38.5
Lifting Height		m	12
Tracks Center Distance		m	1,200
Speed	Hoisting	m/min	0.05 ~ 0.5 ~ 1 (no load)
	Trolley		Hydraulic push rod
	Crane		1 ~ 10 ~ 12 (no load)
Electric Hoist	Model		WH164 20T-12D
	Lifting Capacity	t	20
	Lifting Speed	m/min	3.3
	Traveling Speed	m/min	14
	Lifting Height	m	12
	Work Duty		A3
Steel Track Recommended			P50, P60
Max. Wheel Load		KN	225
Work Duty			A3
Total Weight		t	505
Total Power		KW	259
Power Source			3P, AC, 50Hz, 380V
