MH Gantry Crane with Electric Hoist

(MH Gantry Crane with Electric Hoist)

MH Gantry Crane with Electric Hoist

Leave a Message!

INTRODUCTION

MH model gantry crane with electric hoist is used together with CD1, MD1 model electric hoists, which is a small and medium-sized gantry crane travelling on tracks. The general lifting weight is 5-20t, span is 14-35m, and working temperature is -20~ +40 degrees.

This gantry crane with electric hoist is a regular crane widely used at open ground and warehouses to load or grab materials. There are two kinds of operation: ground or air operation. The crane power supply can be through cable car and cable drum reel, and customers can choose one of them.

Leave a Message!

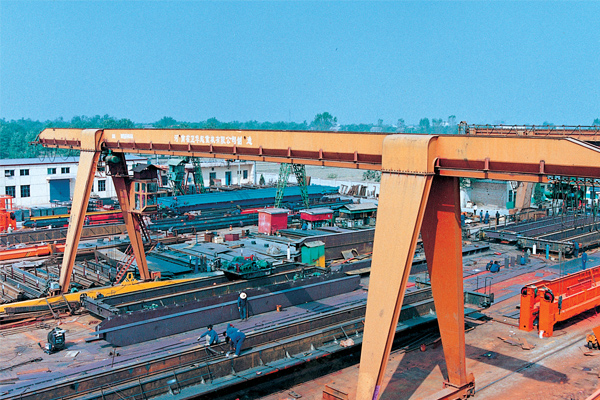

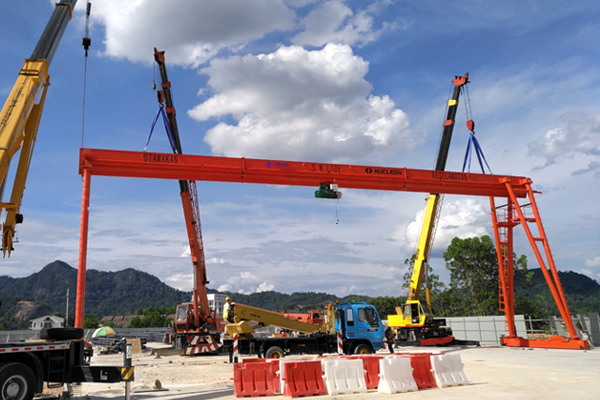

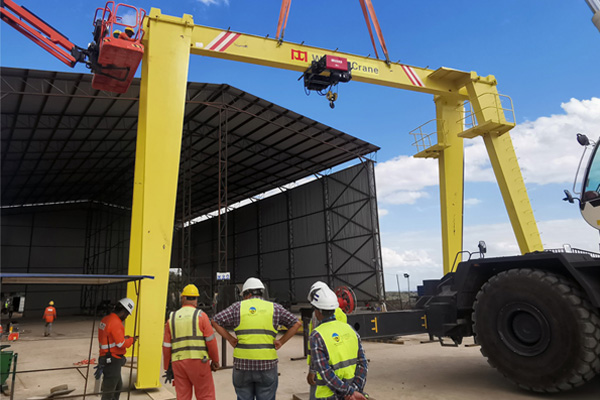

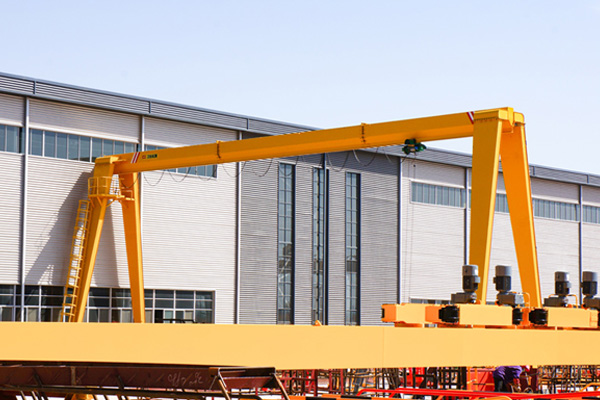

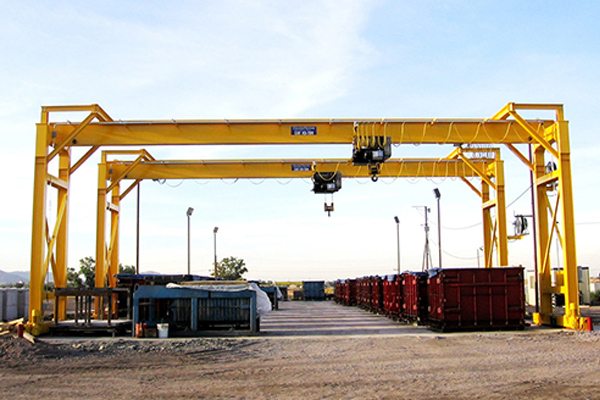

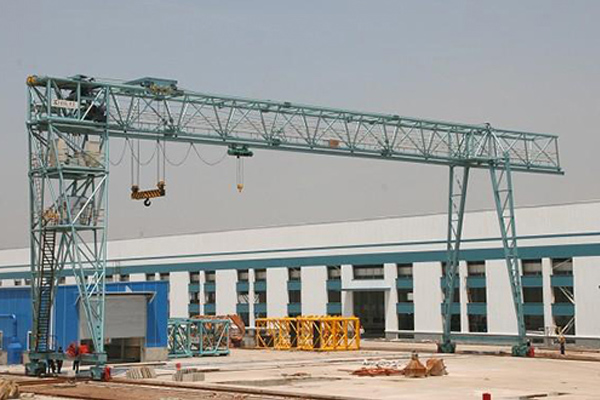

Detailed Photos

Specification

Lifting capacity			T	3		5	10	16	20
Operation type				Handle/remote control/cab
Speed	Hoist lifting		m/min	8 ,8/0.8	8,8/0.8		7,7/0.7	3.5	3.5
	Hoist travelling		m/min	20	20		20	20	20
	Crane travelling	Handle /remote control		20	20		20	20	20
		cab		30,40	30,40		30,40	30,40	30,40
Motor	Hoist lifting		Type /kw	ZD41-4/4.5	ZD141-4/7.5 ZDS10.8/4.5		ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Hoist travelling			ZDY12-4/0.4	ZDY121-4/0.8		ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	trolley travelling	Handle /remote control		ZDY21-4/0.8×2	YZR132M1-6/2.2×2		YZR160M1-6/6.3×2	YZR160M1-6/6.3×2	YZR160M1-6/6.3×2
				ZDY21-4/1.5×2	YZR132M2-6/3.7×2			YZR160M2-6/8.5×2	YZR160M2-6/8.5×2
		Handle /remote control		ZDR22-4/1.5×2	YZR132M2-6/3.7×2		YZR160M1-6/6.3×2	YZR160M2-6/8.5×2	YZR160M2-6/8.5×2
				ZDR24-4/2.2×2	YZR160M1-6/5.5×2			YZR160L2-6/11×2	YZR160L2-6/11×2
Electric hoist			Type	CD1/MD1	CD1/MD1		CD1/MD1	CD1	HC
Lifting height			m	6,9
Work classifications				A5
Power				380V 50HZ 3phase AC
Span			m	12,16,20,24,30

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
