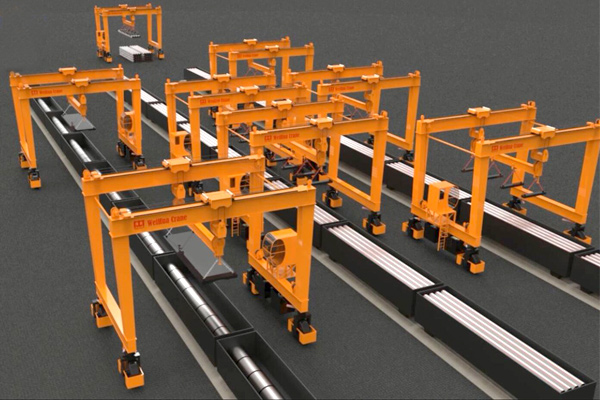

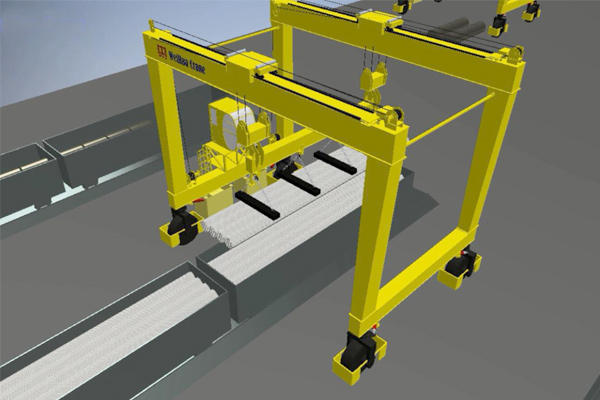

Rubber Tire Gantry Crane for Steel Pipe Handling

This gantry crane is a rubber tyred mobile crane with electromagnetic beam spreader for handling of steel pipes. Rubber tire gantry crane for steel pipe handling works outdoor, can lift several steel pipes at once, carry out 0° traveling, 45°traversing, 90°traversing and in-place steering.

Lifting Capacity: 10+10t (without hook and magnet); 18+18t (without hook)

Classification Level: A6

Max. Lifting Height: 6m

Max. Wheel Load: 300KN

Operating slop: 3% (full load); %8 (unload)

Operation: Operator's cabin

Cross Traveling Mechanism

Traveling Speed: 30m/min

Running Mode: Traction straight

Driving Mode: Hydraulic

Long Traveling Mechanism

Traveling Speed: 100m/min

Running Mode: Straight, transverse, fixed point, rotation

Driving Mode: Hydraulic
