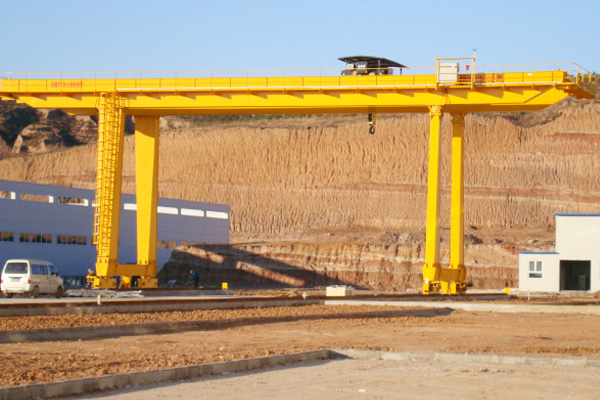

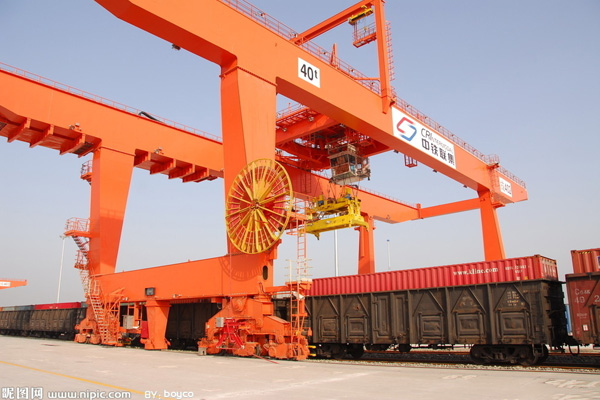

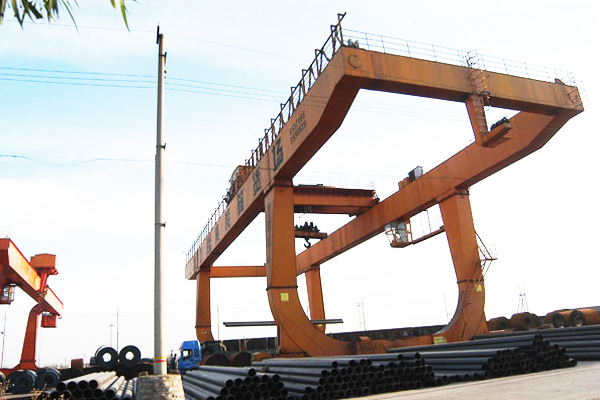

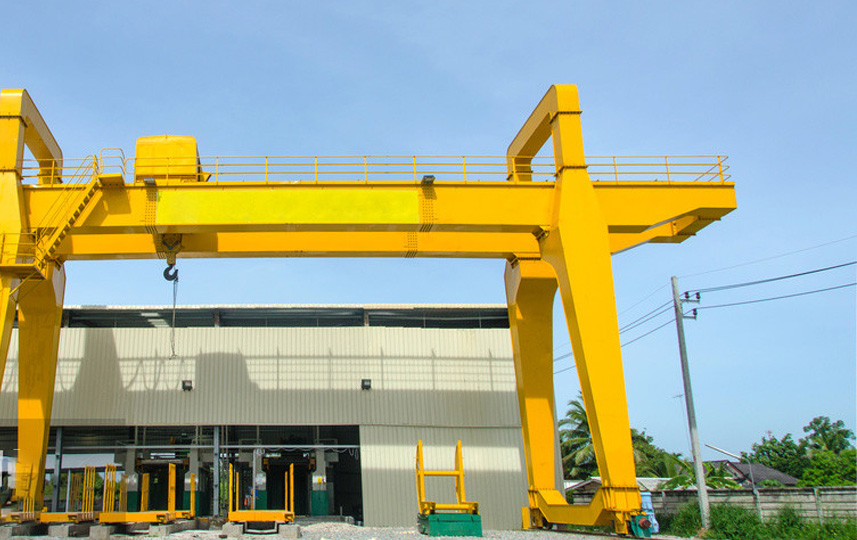

Detailed Photos
Features For U type double beam gantry crane
1. U type double beam gantry crane applies to carry out general handling and lifting work in fixed span range for open freight yard and along with railway lines.
2. U type gantry crane is increased design for track gauge of crab, it makes bigger space of legs and suitable for handling and lifting Larger items such as containers
3. U type gantry crane removed saddle rack due to structural features, The height of crane is reduced at a certain lifting height campare to A type gantry crane.
4. Application: Ferrous Metallurgy. hydroelectric. aerospace industry. automobile manufacture.coal industry and petroleum industry.
5. Can be equiped multiple type of hanger for special purpose.
6. Setup overload and zero protection device. emergency switch. travel limit switches, buffers, rail clamp and other security devices.
7. ergonomic designed driver cabin allows to operated more comfartable, also can equip fun, air conditioner and interphone etc.
Specification
Cap | Main | t | 10 | 16 | ||||||||||
Aux. | 3.2 | |||||||||||||
Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | |||
Lifting Height | 10 | 12 | 10 | 12 | ||||||||||
10.5 | 12.5 | |||||||||||||
Work Duty | A5 | A5 | ||||||||||||
Speed | Main | m/min | 13.3 | 7.9 | ||||||||||
Aux. | 14.5 | |||||||||||||
Crab travelling | 43.8 | 44.1 | ||||||||||||
Trolley travelling | 46.6 | 41 | 40.1 | 40.1 | ||||||||||
limit dimensions | LI | mm | 6500 | 7500 | 8500 | 9500 | 10500 | 7000 | 8000 | 9000 | 10000 | 11500 | ||
L2 | 6500 | 7500 | 8500 | 9500 | 10500 | 7000 | 8000 | 9000 | 10000 | 11500 | ||||
L | 250 | |||||||||||||
C1 | 4500 | 5500 | 6500 | 7500 | 8500 | 4500 | 5500 | 6500 | 7500 | 8500 | ||||
C2 | 4500 | 5500 | 6500 | 7500 | 8500 | 4500 | 5500 | 6500 | 7500 | 8500 | ||||
main dimensions | H | mm | 13800 | 15750 | 14050 | 16300 | ||||||||
H1 | 9000 | 11000 | 9000 | 11000 | ||||||||||
H2 | 500 | |||||||||||||
H3 | 540 | 660 | 540 | 660 | ||||||||||
B | 10554 | 11150 | 11250 | 11250 | 11440 | 11490 | ||||||||
K | 7000 | 7000 | ||||||||||||
W | 9000 | 9300 | 9400 | 9400 | 7908 | 7958 | ||||||||
Max.Wheel Load | kN | 230 | 260 | 280 | 300 | 320 | 330 | 350 | 210 | 230 | 245 | |||
Total Power | kW | 57 | 57 | 57 | 57 | 57 | 86 | 86 | 94 | 94 | 94 | |||
Crane Rail Recommended | P43 | 0U80 | P43 | |||||||||||
Power Supply | 3-Phase A.C.50Hz 380V | 3-Phose A.C.50Hz 380V |
