Overhead Crane for Power Plants

(Overhead Crane for Power Plants)

Overhead Crane for Power Plants

Leave a Message!

INTRODUCTION

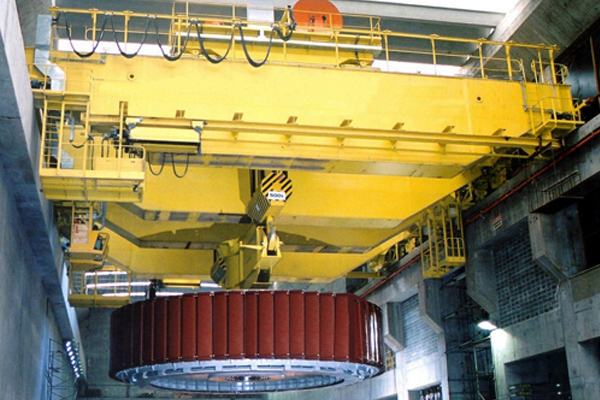

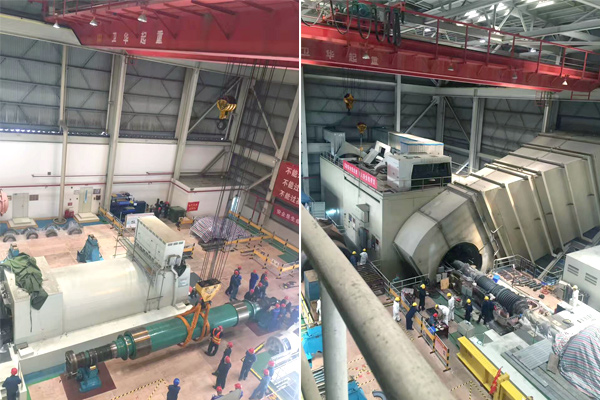

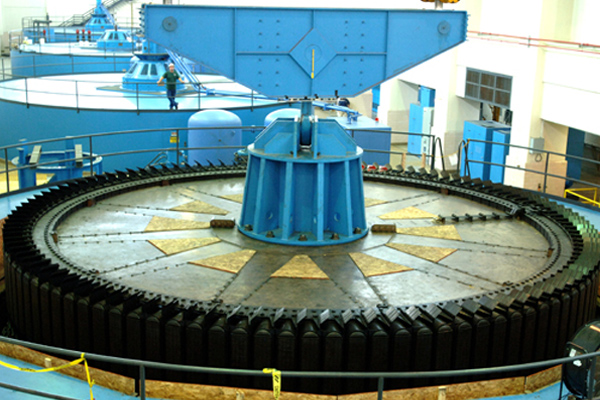

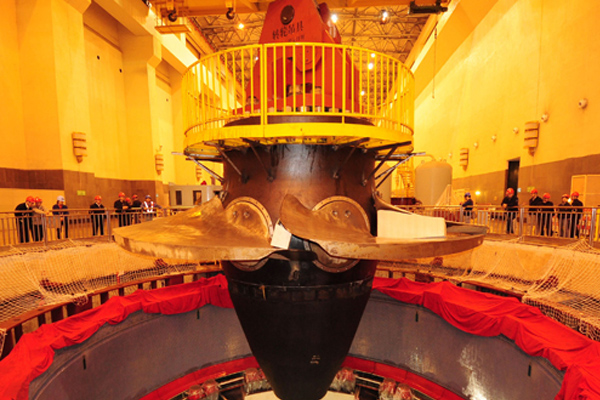

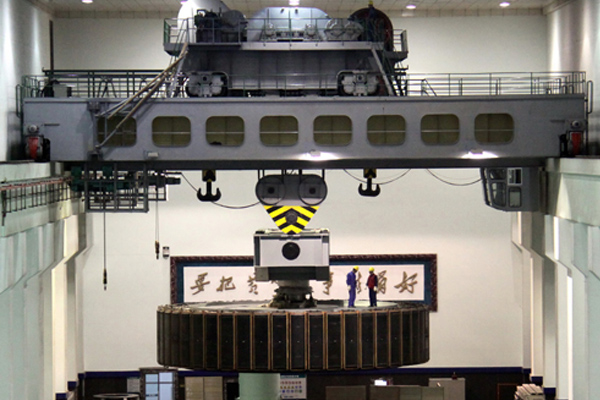

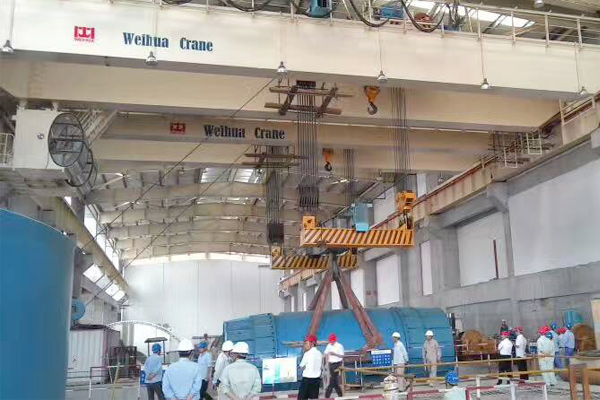

This overhead crane for power plants is employed to lift and assemble stator, steam turbine stator and rotor in power plants, which has the features of light weight, low energy consumption and less maintenance.

We develop crane software by 3D modeling and finite element analysis and optimize lifting mechanism and steel structure. The use of high strength materials increase carrying capacity and reduce weight with less wheel load pressure.

Leave a Message!

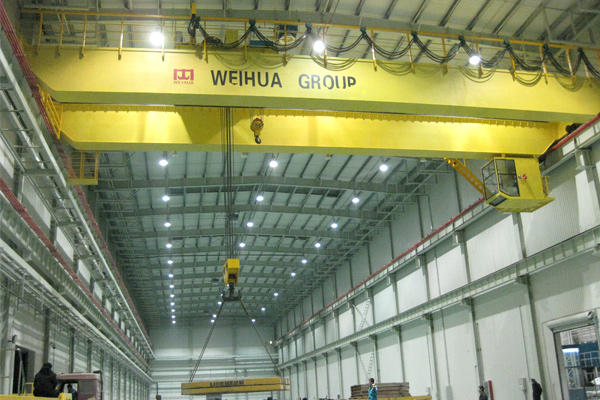

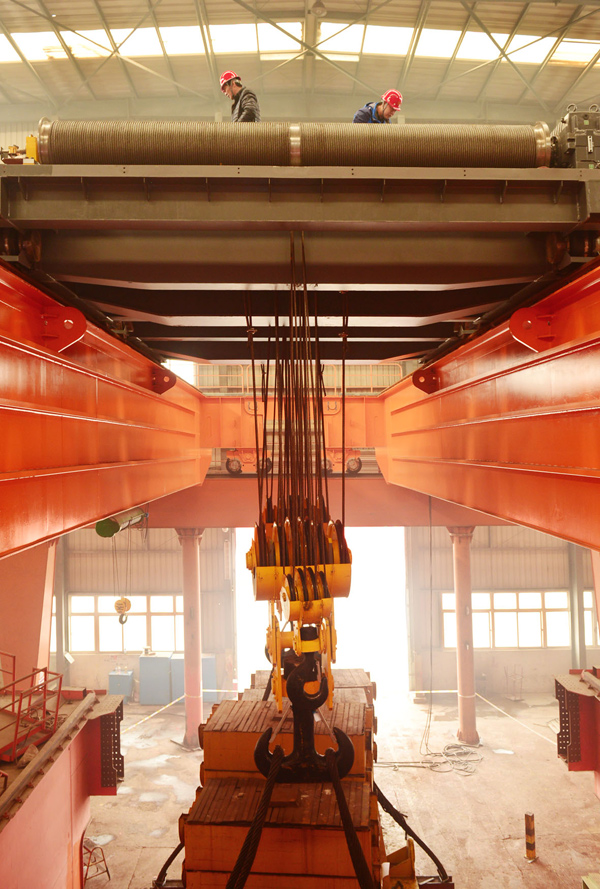

Detailed Photos

Features of Overhead Crane for Power Plants:

1. Saving working space: small limit of left and right space to increase the working space. Small space over the track/rail, thus the workshops space can be fully used.

2. Less cost of service and maintenance: reliable performance and durability to reduce extra cost. High quality and performance components need less maintenance and repair. Low energy consumption.

3. High performance: Adopt frequency conversion tech to lower operating load and make the crane traveling in high speed within light load. Its 1:10 speed range insures the crane traveling smoothly and reduces the impact to workshop. Anti-sway technology to realize precise positioning.

Specification

Technical Specifications

Lifting Capacity	t	80/20			100/20
		Main Hook		80	Main Hook		100
		Vice Hook		20	Vice Hook		20
Lifting Height	m	Main Hook		28	Main Hook		24
		Vice Hook		30	Vice Hook		30
Span	m	10.5~31.5			10.5~31.5
Hoist Lifting Speed	m/min	main Hook		0.15~1.5	main Hook		0.15~1.5

		Vice Hook		0.63~6.3	Vice Hook		0.63~6.3

Traveling Speed	m/min	Crane		1.5~15	Crane		1.5~15
		Trolley		3~30	Trolley		2~30
Max Wheel Load	KN	231~296			286~349

Work Duty		A3			A3

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
